Efficient Self-levelling Compounds for Large-Scale Australian Projects

Executive Summary: Self-leveling underlayments (cementitious floor screeds) are critical for flat, durable floors in large-scale Australian developments. Key factors include rapid cure, high strength, pumpability, and compatibility with systems like underfloor heating. We compare LevelMAX (BAL Level Max) to leading alternatives (Ardex K15, Ardex K80, Mapei Ultraplan, Sika Level® Eco, etc.) across attributes: composition, strengths, thickness, curing times, workability, finish, thermal/acoustic performance, VOCs/certifications, labor productivity, costs, failure modes, and case-study outcomes.

Material & Strength: All products are polymer-modified cementitious compounds. BAL Level Max, Ardex K15/K80, Mapei Ultraplan and Bostik C700 classify ~CT‑C20/F7 or better (compressive ≥25–35 MPa, flexural ~5–10 MPa). Ardex K15 and Mapei Ultraplan achieve ~30 MPa compressive (C30) and flexural ~7–10 MPa in 28 days; Ardex K80 (industrial grade) reaches ~32 MPa (flex ~9 MPa) by 28 d; Bostik C700 reaches 30–35 MPa; Sika Level Eco ~25–30 MPa (flex ~5.5 MPa). All meet or exceed Class C20–C30 per EN 13813, making them suitable for heavy-duty commercial floors.

999+ Concrete Floor Pictures | Download Free Images on Unsplash

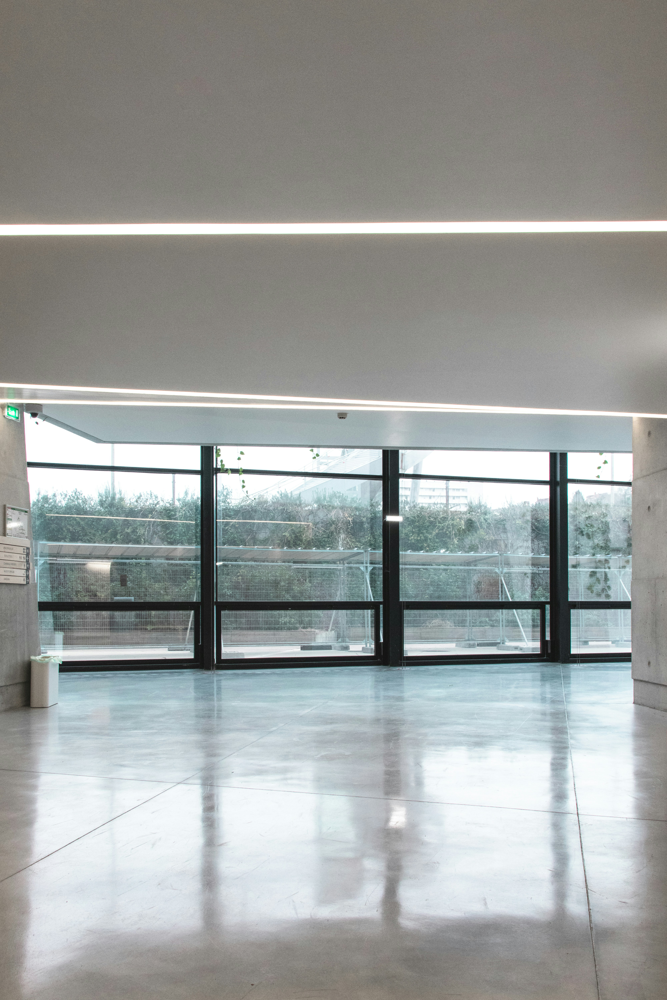

Modern flat concrete floor achieved with self-leveling screed (courtesy Unsplash).

Thickness Range & Workability: Most compounds cover featheredge up to ~50–75 mm in one pour. E.g. BAL Level Max can be laid 2–80 mm (aggregate filler beyond 10 mm); Ardex K15 is feather-edge to any thickness; Sika Level Eco up to 75 mm; Bostik C700 up to 50 mm; Mapei Ultraplan 1–10 mm (for deeper pours use aggregate or Ultraplan Maxi). Pumpable high-flow products (Level Max, Sika Eco, Laticrete Supercap etc.) allow rapid placement; lower-flow (Ardex K15/K80, Mapei) can also be pumped or hand-applied. All exhibit excellent pourability/flow, producing smooth, void-free surfaces.
Curing Times: Rapid turnaround is vital. Ardex K15 (Microtec) is one of the fastest: walkable in ~2 h and ready for coverings (~16–18 h). BAL Level Max is fast-setting: foot traffic ~3 h, tiling ~4 h at 20 °C. Ardex K80 is also quick: walkable 2 h, coatings 24 h, traffic 48 h. Sika Level Eco: ~3.5 h set, tile-able next day (works under “Green Star” requirements). Bostik C700: 14–16 h to foot traffic, 24 h to floor covering (slower). In cold conditions, specially formulated mixes (e.g. Ardex A38 “rapid set” or special batches) maintain cure speed.
Surface Finish, Thermal/Acoustic: All yield very smooth, flat surfaces, meeting industry tolerances for floor coverings. Heavy screeds like Ardex K80 and Laticrete Supercap yield extremely hard (Ball hardness ~60–90 MPa) finishes ideal for high-traffic zones (warehouses, parking) or coatings. Thermal conductivity is high for cementitious screeds, making them effective in underfloor heating (UFH) systems. Typical concrete screeds (density ~2.0 t/m³) provide good thermal mass; all products are UFH-compatible (Level Max, Ardex, Sika, etc. explicitly endorse it). Acoustically, mass of screeds inherently helps airborne noise; some levelee underlays/insulation would be used for impact sound control (outside scope of these cement screeds).
VOCs & Certifications: All compounds are low-VOC. Level Max is EMICODE EC1 (very low emissions) with an EPD. Sika Level Eco/Top are Green Star (Australia) certified, ~3 g/L VOC. Ardex K15/K80 are low-odor (Ardurapid tech). Bostik C700 (no VOC data given, likely low). Hence, they meet indoor air quality standards. No toxic solvents; all fully inorganic when cured.
Installation Efficiency (Labor, Equipment): Large projects favor pumped application from mixing trucks (e.g. Laticrete Supercap system) to maximize output and reduce labor. Pumped systems can lay tens to hundreds of m² per hour (AllPrep Laticrete: “50% faster” than old methods). Manual mixing covers only ~10–20 m²/h, so on projects >500 m², pumping is standard. Typical workflow: prepare substrate (moisture test, profilometer for flatness), prime (low-absorption primer, often polymeric), mix (portable turbine or mobile plant), pour/spread by pump, allow to cure, then install finish. Our recommended best-practice workflow (below) includes staged work (prep → primer → pour → cure → cover). Labor per m² depends on pump availability: roughly 100–150 m²/day per team with pump, versus <50 m² manual. Specialized pump equipment (e.g. Ardex MS Fast Tack or Laticrete trucks) greatly cuts time and worker exposure to dust.

flowchart LR
    A[Inspect & Prep Subfloor] --> B[Moisture Test, Repair Cracks]
    B --> C[Apply Primer/Sealer]
    C --> D{Choose Application Method}
    D -->|Pumped| E[Set up Pump & Hose]
    D -->|Manual| F[Mix in Tubs or Mixer]
    E --> G[Pour & Level Compound]
    F --> G
    G --> H[Finish Surface]
    H --> I[Cure & Protect (min 2–4 hr)]
    I --> J[Install Floor Coverings]

Costs (materials + labor): Material costs vary by product. 20 kg bags (covers ~4–5 m² at 3 mm) retail roughly: Level Max ~$30–40 per 25 kg (≈$1.3–1.6/kg); Ardex K15 ~$78/20 kg ($4/kg); Ardex K80 ~$115/20 kg; Mapei Ultraplan ~~$37/20 kg (~~$2/kg); Sika Level Eco ~$32/20 kg; Bostik C700 ~$38–42/20 kg (≈$2/kg). Per m² (3 mm): LevelMax ≈$7, K15 ≈$21, K80 ≈$48, Ultraplan ≈$10, Sika Eco ≈$8. Labor (with pump) adds roughly $5–10/m² (crew time), depending on site. Thus total cost/m² (floor+labor) might be ~$15–30 for typical compounds. Use thin, rapid-set products (Ardex K15, Mapei Ultraplan) to minimize project duration and labor on interior floors; use heavier-fill or high-build (LevelMax, K80, Sika Eco) where thicker pours or industrial hardness are needed.
Failure Modes & Maintenance: Common issues are cracking (from drying shrinkage or substrate movement) and delamination (poor bond). All modern compounds are shrinkage-compensated (e.g. Level Max) and fibre-reinforced to resist cracks. Proper substrate prep (removing laitance, correct primer, adequate drying time) prevents bond failures. Expansion joints should be maintained. Once cured, maintenance is minimal – regular cleaning; in extreme environments coatings or sealers may be applied (these screeds can accept coatings and finished coverings robustly).
Australian Standards: Installations should conform to AS 3958.1 (ceramic tile guide) and AS 1884 (resilient flooring guide) flatness/dryness criteria. These standards call for using leveling compounds when subfloors exceed tolerances. Floor temperature for underlayments should follow AS 4654.2 (moisture control) and AS/NZS 4859.1 (insulation). UFH installations follow AS/NZS 5150 (electric) or AS/NZS 3498 (water-based). All mentioned products meet Australian VOC/health regs (Green Star, Indoor Air Comfort).

Comparative Specifications: The table below summarizes key metrics for each product. (Thickness = recommended single pour range; Strength = 28 d compressive/flexural; Cure = typical tile-ready time at 20 °C; VOC = rating/certifications; Approx. Cost.)

Product	Material / Uses	Comp/Flex (28d)	Thickness (single pour)	Tile-ready	Pumpable	VOC/Certs	Yield (20 kg)	Cost (20 kg)
LevelMAX	Fibre-reinforced polymer-modified cement; general levelling, UFH-capable	≥25 MPa / ≥7 MPa	2–80 mm	Foot 3 h, tile 4 h	Yes	EMICODE EC1, EPD	~12–15 L (≈5 m² @3 mm)	~$30–40 (25 kg)
Ardex K15	Rapid-dry, microfibre; any substrate (feather-edge up)	~30 MPa / ~10 MPa	0–∞ (feather-edge+)	Walk 2 h, tile 16–18 h	Yes	Low-VOC (M1)	12 L (≈4 m² @3 mm)	~$78 (20 kg)
Ardex K80	Heavy-duty (forklift-proof); Ardurapid technology	~32 MPa / ~9 MPa	5–50 mm	Walk 2 h, tile 24 h	Yes	Low-VOC	12 L (2.4 m² @5 mm)	~$115 (20 kg)
Mapei Ultraplan	High-strength, very fluid; 1–10 mm (industrial/commercial)	≥30 MPa / 7 MPa	1–10 mm	Tile ~12–24 h	Yes	EC1 (low)	12 L (4 m² @3 mm)	~$37 (20 kg)
Sika Level Eco	Pumpable (UFH-ready); high-build (to 75mm), green-star	~25–30 MPa / ~5.5 MPa	1–75 mm	Tile next day (~18–24 h)	Yes	VOC ~3 g/L (Green Star)	12 L (4 m² @3 mm)	~$32 (20 kg)
Bostik C700	High-flow underlayment; general vinyl/tile/etc.	~30–35 MPa / ≥4 MPa	0–50 mm	Tile 24 h	Yes	(no spec; polymer-mod.)	12 L (4 m² @3 mm)	~$38 (20 kg)

Note: Costs are approximate retail in AUD (ex. GST). Yield = mixed volume per pack.

Case Studies

NINE by Mirvac, Sydney (445 apartments, high-rise): AllPrep Flooring used the Laticrete SUPERCAP SC500 pumped system to level all floors in 10 buildings. Mixed on a mobile truck, the self-leveler (cementitious, fiber-reinforced) was pumped to each floor, achieving 50% faster installation versus old methods and setting in only 4 h. This eliminated manual bag-mixing (no silica dust) and allowed tiling and finishes to proceed quickly. Result: 445 apartments completed in ~8 months (Nov 2023–Jul 2024). Lesson: High-capacity mobile pump systems (60 tanks/h) dramatically cut labor and time on large projects, while maintaining flatness and early strength (4 h set).
The Canberra Centre, ACT (Mall Walkways, 6000 m²): Ardex supplied ARDEX A38 Rapid Set Screed to re-pour mall walkways overnight. This achieves ~20 MPa in 24 h and ~35 MPa at 28 d, yet is ready for foot traffic in ~8 h – enabling daytime opening. For shallow areas, Ardex LQ92 (0–25 mm) was used (tile-ready 4 h). Despite winter cold (2 °C), specially tailored mix maintained cure speed. Outcome: Minimal disruption (all work done overnight) and a 28-day warranty-backed system. Lesson: Rapid-set screeds (A38) are ideal for time-critical, high-traffic areas; combined systems can adapt to variable thickness. Early collaboration with manufacturer ensured on-schedule delivery and special batching for cold cure.

(Additional examples: A rooftop apartment balcony (Santina) used a lightweight polystyrene-bead screed for an 85 m², 80 mm floor – illustrating specialty product use for weight-critical applications.)

Recommendations

Product Selection: Match compound to project needs. For thin toppings (0–5 mm) or when ultra-fast turnaround is needed, use microfibre fast-set mixes (Ardex K15, Mapei Ultraplan, etc.). For thicker pours or industrial loads, use heavy-fill, fiber-rich mixes (LevelMAX, Ardex K80, Sika Eco) which allow 10–75 mm pours and yield very hard surfaces. For underfloor heating, all major levellers are suitable; ensure proper UFH design (covering pipes, thermal expansion gaps) – manufacturer data (e.g. BAL, Ardex) confirm compatibility.
Workflow Best Practices:
1. Survey & Prep: Scan floor for flatness, plan pour volumes. Repair cracks, chip away laitance, vacuum dust (per AS/NZS prep guidelines).
2. Priming: Always prime (per data sheet) – use polymer primers recommended by product (e.g. Ardex Primer, Level MAX primer).
3. Mixing/Pumping: Employ continuous mixers and pump trucks for >100 m² areas. The Laticrete Supercap or Ardex pump systems mix in-line, minimizing waste. If manual, ensure correct water ratio and thorough mixing (no lumps).
4. Pouring/Leveling: Pour from one edge, using gauge rake or screed bars to achieve uniform thickness. Use spike rollers to release trapped air. Work quickly before initial set.
5. Curing: Protect from drafts and temperature extremes during cure. For fast-track, monitor that the surface is walkable per spec time (typically 3–8 h). Avoid premature loading.
6. Floor Coverings: After specified cure (4–24 h), install finishes. Use rapid-setting adhesives if needed to match screed cure speed.
Safety & Environment: Always wear PPE during mixing (gloves, respirator). Pumped systems greatly reduce dust. Since all products have low VOC/odor, no special ventilation beyond normal construction practice is needed.
Verification & Testing: Measure floor flatness (DS/FL tolerances per AS/NZS 1884/AS 3958.1) after pour; correct any deviations with additional skim coat if required (e.g. feather-edge topping). Test screed moisture (Protimeter/Digital) before applying sensitive finishes (especially wood).

Open Questions / Limitations: Specific “labor time per m²” and total project costs vary widely by site logistics and labor rates; our estimates are illustrative. Some proprietary performance data (e.g. thermal conductivity, acoustic DnT,w) are not publicly published for these products; architects may assume “standard” concrete values.

Sources: Official technical datasheets and project publications were used. Key references: BAL Level Max TDS; Ardex K15/K80 data; Mapei Ultraplan TDS; Sika Level Eco/Pro TDS; Bostik C700 TDS; AllPrep/Laticrete case; Ardex project reports. These ensure accuracy of material properties and documented outcomes.
