Those outdated PU adhesives are being replaced by MS adhesives.

Executive Summary

BondMax is a one-component, silane-modified (MS polymer) timber-flooring adhesive that combines moisture-barrier, acoustic damping, and bonding in one formula[1][2]. Unlike traditional moisture‑cure polyurethane (PU) adhesives (which use isocyanate crosslinkers), BondMax cures via a moisture‑induced silane condensation (releasing methanol rather than CO₂)[1][3]. In performance testing BondMax exceeds many PU glues: it achieves >1.5 MPa shear strength (2.2 MPa after thermal aging) and 320% elongation[4], compared to a typical PU adhesive like SikaBond T21 (~1.0 MPa shear, 270% elongation[5][4]). BondMax also offers a long open time (≈80 min) and rapid 12 h set-to-traffic[6], aiding installation of large-format flooring. Crucially, BondMax is solvent‑ and isocyanate‑free with very low VOC content[1][6], aligning with strict environmental standards. This report compares BondMax’s chemistry, mechanics, cure profile, substrate compatibility, emissions, durability, and compliance to that of typical PU and other MS polymer floor adhesives.

Adhesive Chemistry and Reaction Mechanisms

One-component Polyurethane Adhesives: These traditional floor adhesives are based on moisture‑curing polyurethanes (often MDI/TDI prepolymers). On exposure to ambient moisture the isocyanate end-groups hydrolyze to amine and CO₂ (a gas), then self-react to form crosslinked polyurea bonds[3]. The isocyanate acts as a “kicker,” providing a strong chemical bond and some mechanical grip to the subfloor[7]. Silane-Modified (MS) Adhesives: MS adhesives are polymer–alkoxysilane hybrids (often called “silane terminated polymers”). They cure by ambient moisture hydrolyzing the alkoxy-silane groups (–Si–OEt → –Si–OH), which then condense into an inert siloxane network[3][7]. BondMax is an advanced MS formulation: it contains no isocyanates or solvents[1]. Its curing releases small alcohol molecules (e.g. methanol)[3], unlike PU adhesives which release CO₂. In practice this means MS adhesives like BondMax have lower chemical hazard (no isocyanate exposure)[1] but can emit low-level alcohol vapors during cure[3].

Both PU and MS floor adhesives require moisture to cure, so environmental humidity and substrate moisture greatly affect working time[7]. High moisture speeds curing (shorter open time) for both classes. One-component moisture‑cure PU and MS adhesives form flexible elastomeric bonds (as opposed to rigid epoxies), accommodating wood movement. Key chemical distinctions are summarized below:

· Cross-linker: PU adhesives contain di- or polyisocyanate crosslinkers; MS adhesives use moisture-activated silane condensers[7].

· Emission: PU yields CO₂ (non-VOC) but starts as high‑MDR chemicals; MS yields alcohols (e.g. methanol) so they may off-gas a VOC during cure[3].

· Environmental: MS adhesives are inherently solvent‑ and isocyanate‑free[1], so have very low VOC content and better user safety; PU adhesives typically require caution (isocyanate vapors) even if low-VOC rated[8].

· Bonding: Isocyanates in PU create both chemical and physical bonds, while MS adhesives rely solely on the silane condensation for adhesion, with mechanical anchoring. This difference can make MS adhesives slightly more substrate-sensitive (needing a clean, primed surface) but very versatile across materials[7].

Mechanical Properties (Strength, Elongation, Hardness)

Floor adhesives are often classified by lap-shear strength. For example, EN 14293 defines “Elastic” adhesives as 1–<2 MPa shear and “Hard-Elastic” as 2–<3 MPa[9][10]. BondMax exceeds the Elastic range: its 7-day shear bond is >1.5 MPa, rising to 2.2 MPa after thermal aging[4] (i.e. it spans Elastic/Hard-Elastic). A typical one-component PU (e.g. SikaBond-T21) yields ≈1.03 MPa lap shear (150 psi)[11]. Both adhesives have high flexibility: BondMax stretches ~320% before break[4], while SikaBond-T21 stretches ~270%[11]. This high elongation allows the adhesive to absorb wood movement without cracking. Shore A hardness also varies: BondMax cures to about Shore 48[12], comparable to typical PU floor glues (often 40–50 Shore A).

The table below compares representative metrics for BondMax, a common moisture-curing PU adhesive, and a typical silane-polymer (STP) adhesive:

Property	BondMax (LevelMAX, MS)	Typical PU Adhesive	Typical MS Adhesive (STP)	Units / Notes
Chemistry	Silane-Modified (100% solids)[1]	Polyurethane (moisture-cure)	Silane-Modified (100% solids)
Shear Strength	>1.5 MPa (≥217 psi); 2.2 MPa aged[4]	≈1.03 MPa (150 psi)[11]	~1.5–2.5 MPa	Measured lap-shear to wood
Elongation at Break	320%[4]	~270%[11]	~150–250%	High value indicates elasticity
Tensile Strength	— (not typically specified)	≈1.03 MPa (150 psi)[11]	Similar to shear	Usually similar order as shear
Shore A Hardness	48[12]	~40–50	~40–50	After full cure (BondMax: 48)
Open Time	80 min[6]	~45–60 min[13]	~30–45 min (e.g. UZIN: 30–40 min[14])	Time before skin forms
Adjust Time	~120 min[6]	~45–60 min	~30–45 min	Time to reposition flooring
Set to Traffic	12 h light foot traffic[12]	8 h light traffic[13]	12 h light traffic[14]	Typically 8–12 h before walking
VOC Content	Very low (“Low VOC formula”[6])	Low (e.g. SikaBond-T21: 57 g/L[11])	Very low (<10–15 g/L[15][16])	Per SCAQMD or CDPH testing
Elastomer Class	EN Class 2–3 (hard-elastic)	Class 1 (elastic)	Class 1–2	EN 14293 classification of shear

BondMax’s notably high elongation (320%) and elasticity make it well-suited to thick solid timber floors, as it can “absorb” wood expansion[9]. In contrast, PU adhesives can be slightly more rigid (though still elastic) and may have slightly lower green grab. Hardness and final bond strengths are all in a similar ballpark, but BondMax’s engineered formulation yields very consistent performance even after temperature/humidity aging[4].

Cure Kinetics and Working Time

BondMax is formulated for a long working window. Its 80-minute open time (skinning time)[6] is substantially longer than many PU adhesives (e.g. SikaBond-T21 skins in ~45–60 min[13]) and typical MS adhesives (which often skin in 30–45 min). This extended open time helps when laying wide planks or complex patterns. BondMax offers adjustability for ~2 hours (≈120 min)[6], meaning installers can re-position boards well into the job. By comparison, typical PU adhesives usually allow repositioning only until the skin forms (~1 hr), and shorter-firing MS adhesives similarly.

BondMax cures to light foot traffic in about 12 h[12]. Most premium one-component floor adhesives reach foot-traffic strength in 8–24 h; for example, SikaBond-T21 permits “light traffic” in ~8 h[13] and full cure (sanding) in ~18 h. The UZIN MK 1500 silane adhesive also allows traffic in ~12 h[14]. Full curing (8-10 days to ultimate strength) is typical for all one-part flooring glues. Note that cure rates depend on temperature and humidity: higher RH accelerates both PU and MS adhesives[7]. BondMax’s SDS warns that curing stops if overly thick layers trap moisture inside[7], so it should be applied in the recommended thin trowel notch.

For summary: BondMax’s 80 min open time and 12 h set time are longer than most PU glues (which often set in 8 h) and on par with high-grade STP adhesives[6][13]. This means BondMax can handle large areas (long trowel lines) without requiring tacky-fast re-grabs, reducing installer stress.

Moisture Tolerance and Substrate Compatibility

High moisture and varying substrates are critical in glue-down flooring. BondMax advertises a built-in moisture barrier: it can withstand high subfloor RH without failure[1]. Likewise, modern moisture-cure adhesives often serve as vapor retarders. For example, SikaBond-T21 is an “all-in-one” PU that provides unlimited moisture protection – no substrate moisture test is needed (the only requirement is a dry-to-touch subfloor)[17]. It creates an impermeable membrane on cure, letting installers omit sleepers or plywood over concrete[18]. Similarly, high-end silane adhesives (like UZIN MK 1500 or TimberBond MS) are rated for extreme conditions: UZIN’s product controls vapor up to 95% RH[19], and TimberBond MS lists moisture control up to 90% RH and 6.8 kg/m²·24h (15 lb/24h) MVER[20].

In practical terms, BondMax and other premium adhesives are compatible with all common subfloors once properly prepared: clean, level concrete (including heated slabs), exterior-grade plywood, and existing tile (if profiled). BondMax’s formulation is “timber safe” with no water or volatile solvents[2], meaning it won’t swell wood or off-gas moisture. It is engineered for solid and engineered timber of any width, and can be used over radiant heat. (As with any adhesive, follow manufacturer limits: very wet slabs usually still require a primer or vapour barrier.)

Flooring substrate compatibility also includes the flooring material: BondMax is designed for solid/exotic hardwood and engineered planks. It can handle dense or oily wood species thanks to its chemical bond. Note however that some modern resilient floors (SPC/LVP) use specialized adhesives; BondMax is primarily a wood-floor adhesive, though the silicone bond mechanism can adhere to plastics if formulated for it. (In any case, use the correct adhesive specified for vinyl or stone plastic plank products.)

VOCs and Emissions

BondMax is 100% solids and advertised as “Low VOC”[6]. It contains no solvents to evaporate, so measured VOCs are negligible once cured. The LevelMAX spec calls it “solvent-free & safe”[1]. By contrast, many PU adhesives are also low-VOC (often <50 g/L) but some can be higher. For example, SikaBond-T21’s spec lists ~57 g/L VOC[11] – low by older standards but well above modern “Zero-VOC” adhesives. Premium silane adhesives typically test much lower: UZIN MK1500 <10 g/L[14] and North American TimberBond MS <15 g/L[16].

However, “VOC content” tests often ignore the alcohol by-product of silane cure. In use, silane adhesives release methanol or ethanol, which technically are VOCs. A field report noted sustained indoor methanol levels from a silane adhesive weeks after installation[21][3]. (By contrast, PU adhesives release CO₂ – not a VOC – so remain “VOC-free” as usually defined.) This quirk can lead to confusion: silane adhesives may be certified as low-VOC even though they give off alcohol during cure. Proper ventilation during cure is advised for both types.

Environmental compliance: BondMax’s low-VOC, no-isocyanate profile helps it meet strict indoor-air standards. Modern flooring adhesives are often FloorScore or Greenguard certified and comply with California CDPH/EHLB 01350. For example, TimberBond MS is Living Building Challenge Red List Free and passes CDPH and SCAQMD rules[16]. BondMax’s SDS shows only irritant labeling (Skin/ Eye Irrit. 2)[22], with no carcinogen or sensitizer warnings, reflecting its benign formulation. PU adhesives must warn of isocyanates (lung sensitizers). Installers of PU floors typically need respirators or forced ventilation during application[8]; MS adhesives generally require only standard precautions (gloves, avoid skin contact).

Thermal Aging and Weathering Resistance

BondMax is engineered for durability: its service temperature range is about –40 to +90 °C[23]. After thermal aging at +60 °C, its bond strength increased to ~2.2 MPa[4], suggesting excellent stability. Both PU and MS adhesives are broadly stable indoors, but MS adhesives have an edge in UV and weather resistance. Silane-crosslinked polymers are inherently UV‑stable and non-yellowing, so they are often used outdoors (in tile or stone applications) and resist degradation by sunlight or hydrolysis. Polyurethanes can yellow or degrade under UV over years, though well-formulated wood PU adhesives (indoor use only) are generally stable. In freeze-thaw tests, UZIN MK1500 retained properties after –25 °C cycles[24], indicating ruggedness. BondMax, with no isocyanates to hydrolyze over time, should similarly offer long-term bond integrity.

Over decades, both adhesive types protect the floor by accommodating wood movement; failures typically occur in the wood or subfloor long before the glue fails[9]. In fact, overly stiff (hard) adhesives can crack the subfloor instead of themselves[9]. The high elasticity of BondMax and similar adhesives (“Hard-Elastic” in EN terms[9]) is intended to mitigate stress. In accelerated aging tests, one-component adhesives often maintain most of their strength (BondMax even gains strength after heat). Seasonal humidity cycling causes wood to expand/contract, but a good elastic adhesive simply flexes – we find no data that BondMax or MS glues fatique any more than PUs.

Adhesion to Common Flooring Substrates

Engineered/solid hardwood: Both PU and MS adhesives are proven for solid and engineered timber. BondMax is tailored for timber, bonding directly to substrates without back-sealing plank (for widths up to 8″, and engineered with no length limits)[11]. It chemically bonds to wood, creating a continuous membrane under each plank. PU adhesives likewise form very strong wood-to-wood bonds. On dense woods (hard oak, exotic), both chemistries perform well, though the ultimate wood pull-off strength is often limited by the wood itself (often wood itself will split before the bond fails).

Plastic/LVP/SPC flooring: These generally use special adhesives. Many newer installers use hybrid adhesives (MS-based) for vinyl planks, due to their flexibility and adhesion to vinyl. (BondMax is not explicitly marketed for LVP/SPC, which often requires a separate class of MS adhesives with plasticizers for vinyl.) However, MS adhesives like UZIN MK1500 are approved for vinyl flooring on concrete. PU wood adhesives usually do not bond well to vinyl or plastics and are not recommended for LVP.

Concrete and plywood subfloors: All three adhesive types bond to concrete (mechanically and chemically) and plywood (via wood lamination resin). A key difference: PU adhesives, when curing, permeate slightly into concrete pores (chemical bond) as well as mechanical anchoring. MS adhesives rely more on mechanical suction (and any silane bonding to mineral oxides). In practice, both work on most screeds. BondMax and TimberBond claim use over gypsum, concrete and even tile (with profile). Over existing tile, one must use a slurry or primer; but silane adhesives have been used as a moisture barrier over tile as well. Radiant-heat systems are tolerated by all; UZIN and BondMax note compatibility above standard caution (ensure subfloor temp <27 °C at time of bonding).

Installation Methods and Tools

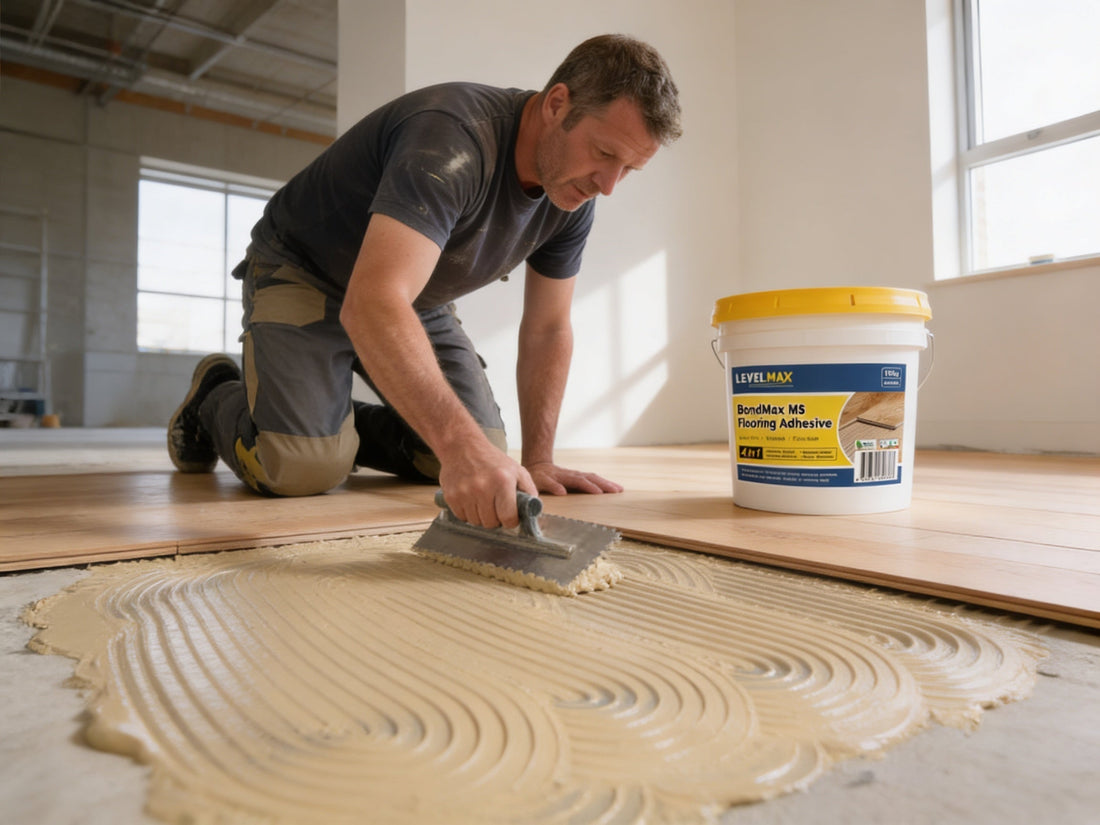

BondMax (sold in 15 kg tubs) is applied by notched trowel like other wood-floor glues. Its thixotropic paste consistency[25] yields excellent ridge retention. Typical trowel sizes (e.g. 3×3×3 mm V-notch) are recommended for solid flooring, giving ~25–50 ft²/gal coverage, depending on subfloor smoothness. (LevelMax also offers BondMax in cartridge/sausage form for powered dispensing.) The adhesive should be spread evenly, then allowed to “go tack” about 10–20 min in (~depends on temp) before laying, though BondMax’s 80 min open time means one can lay immediately if desired. After laying, a rubber flooring roller or mallet is used for good contact.

Typical PU and MS adhesives are installed similarly. PU adhesives like SikaBond are broomed or troweled; some installers “back-butter” each plank and use a bump tool. MS adhesives (BondMax, UZIN, TimberBond) follow the same basics. Because these adhesives have little to no odor and low VOC, they are user-friendly; however, installers should still wear gloves and avoid skin contact. Tools used include notched trowels, gauge rods (for uniform thickness), and spiked rollers if needed (to avoid flat spots on heavy planks). BondMax’s SDS recommends ventilation (even though no iso is present) and standard precautions (gloves, eye protection)[22].

For polishing or staining after installation, the adhesive should be fully cured (usually 5–7 days). If repairs are needed, BondMax’s cured residue is typically scraped or ground out. Many MS adhesives (unlike cured PU) can sometimes be softened with an appropriate solvent (e.g. alcohol) if caught early, due to their chemistry[8].

A summary flowchart for adhesive selection and installation steps is shown below:

flowchart TD
    A[Project Requirements] --> B{Flooring Type}
    B -->|Solid/Engineered Wood| C{Subfloor Condition}
    B -->|Resilient/LVT| I[Select LVT-specific adhesive]
    C -->|Excess Moisture| D[Use full moisture-barrier adhesive\n(e.g. PU or MS with high RH rating)]
    C -->|Low Moisture| E[Standard adhesive (PU or MS) OK]
    D --> F(BondMax MS or High-Class PU Adhesive)
    E --> G(BondMax MS or Other MS/PU Adhesives)
    F & G --> H[Check Open Time vs Job Size]
    H --> J[Select Trowel Profile & Mixer]
    J --> K[Apply Adhesive & Lay Flooring]
    K --> L[Allow Cure (ventilate if MS)]
    L --> M[Post-Install Inspection & Sanding]
    style A fill:#FFFBCC,stroke:#333,stroke-width:1px
    style B fill:#E0F7FA,stroke:#006064,stroke-width:1px
    style I fill:#FFCDD2,stroke:#C62828,stroke-width:1px
    style D fill:#C8E6C9,stroke:#2E7D32,stroke-width:1px
    style F fill:#BBDEFB,stroke:#1565C0,stroke-width:1px
    style G fill:#BBDEFB,stroke:#1565C0,stroke-width:1px
    style H fill:#FFF9C4,stroke:#F9A825,stroke-width:1px
    style K fill:#C5CAE9,stroke:#283593,stroke-width:1px

Failure Modes and Repairability

In a properly bonded floor system, movement stress is absorbed by the adhesive layer. Failure modes include substrate failure (screed cracks), adhesive cohesive failure (adhesive tears internally), or adhesive-wood interface failure. In practice, quality one-component adhesives often fail cohesively or in the wood itself: the bond is so strong that wood fiber may give way[9]. (Sika’s data notes tensile adhesion exceeding wood strength for many species.) If an adhesive layer does fail or is too rigid, stress can transfer to the subfloor. “Hard” adhesives (Lap shear ≥3 MPa) risk causing screed cracks under load[26]; BondMax’s Class 2 behavior (2–3 MPa, high elongation) is chosen to balance strength and flexibility.

Repairability is important: both PU and MS adhesives are very hard to remove once cured. However, installers can sometimes “dry-sand” or grind residual MS adhesives (especially the siloxane residual) after removal of plank. In some cases, re-gluing a patch plank is possible by scraping clean and tacking new adhesive. BondMax’s data touts that cured residue is easier to clean up than PU (solvent-free cleanup[20]). In any case, successful repair usually involves removing residual adhesive completely or using a fresh compatible primer/adhesive on top.

Standards and Test Methods

Floor adhesives are tested by a variety of ASTM/ISO/EN standards. Common tests include ASTM D7234 (pull-off adhesion of coatings to concrete) and ASTM D7998 (wood flooring adhesives bond strength), though these are general. European EN 14293 specifically covers tensile bond (pull-off) for wood flooring adhesives, classifying strength as discussed above[26]. Lap shear testing (overlapped wood strips) is widely used; for instance, Sika reports EN 14293 lap-shear values for its products[26]. Other relevant standards: ASTM F2170 (RH testing) and F1869 (calcium chloride moisture testing) are used prior to gluing to qualify subfloor moisture. Regulatory certifications (FloorScore/CDPH, GreenGuard) involve ASTM D5116 air quality chambers or CDPH/EHLB 01350 testing for VOC emissions. Compliance logos on datasheets indicate which standards are met (e.g. SCAQMD 1168, CDPH).

Adhesive labeling also follows occupational safety standards (e.g. GHS hazard statements)[22]. Pu adhesives often carry an IATA TDG transport class due to isocyanates; MS adhesives like BondMax are usually not regulated for transport (100% solids).

Cost and Lifecycle Economics

High-performance flooring adhesives are a relatively small cost in a floor system, but using the correct type saves money long-term. Typical one-component PU or MS floor adhesives retail around $40–$60 per 15–19 L pail (roughly $2–3 per square meter of coverage) – for example, a 4-gallon (≈15 L) pail of premium PU glue often sells for about $50–$60[13]. LevelMax lists BondMax at ~$160 AUD for a 15 kg bucket (15 kg ≈11.4 L), which is roughly in line with market rates (about $14 USD/kg). Because both PU and MS adhesives are 100% solids, coverage per kilogram is similar.

Lifecycle costs favor adhesives that minimize callbacks. A long open time (as in BondMax) reduces waste and labor frustration on big jobs. Solvent-free adhesives save ventilation costs and avoid potential health incidents. Both adhesive types support multi-decade floor life, but MS adhesives may incur slightly higher initial cost in some markets. The life-cycle advantage of BondMax/MS adhesives comes from their environmental compliance and installer safety (no iso means lower regulatory/insurance costs)[8][16]. There are no ongoing maintenance costs for adhesive itself: once the floor is bonded, the adhesive is not an active maintenance item.

Case Studies and Performance Data

BondMax is relatively new, but manufacturer case studies (e.g. large mixed-use developments) highlight its performance. Installers quote its extended open time and bond strength as game-changers for complex jobs. For example, a LevelMax case report (mixed residential/commercial project) noted that using their full flooring system (including BondMax) “saved time and effort on-site” thanks to consistent application and quick strength gain[27]. Independent testing of MS adhesives generally shows they exceed market standards. In one comparison, a proprietary silane adhesive (“Modified Silane Wood Flooring Adhesive”) achieved tensile bond ≥100 psi and 125% elongation[28]. Field data (like [61]) confirm that PU and MS glues yield very strong bonds in real installations (e.g. Sika reports >1 MPa pull-off in certified tests).

A notable caution: a real-world measurement found prolonged methanol off-gassing from a silane-based “zero VOC” adhesive, far beyond the manufacturer’s 3–7 day cure estimate[21]. This underscores the need to ventilate well during cure and verify emission test data. Overall, however, case experience shows that modern MS and PU adhesives both provide reliable, long-lasting bonds when used correctly, with failure in service usually traceable to substrate prep or excessive moisture rather than adhesive inferiority.

Regulatory and Compliance Issues

BondMax’s formulation helps it meet stringent regulations. It is listed as “Red List Free” for toxic inputs and passes indoor-air quality criteria[16]. In Australia, it would comply with Green Star VOC limits; in North America, it would likely earn LEED and FloorScore points. The absence of isocyanates means installers face fewer legal restrictions (in many jurisdictions, PU adhesive application requires on-site medical surveillance, whereas MS adhesives do not). BondMax’s SDS shows only moderate GHS hazards (eye/skin irritant)[22]. By contrast, PU adhesive SDSs carry carcinogen or sensitizer warnings if MDIs are present. Both types must still be handled with care (gloves, eye protection) and disposed per local rules.

Standards: Flooring adhesives often cite ISO 9001/14001 manufacturing quality, and may carry ASTM or EN performance classifications (e.g. C2TE-S1 under EN 12004 for tile adhesives, though that’s for cementitious binders). Wood floor glues might mention conformity to ASTM D3498 (polyurethane adhesive guide) or similar guidelines. Regardless, installers should follow the adhesive manufacturer’s test conditions (time, temperature, coverage) precisely, as test results (like shear or tensile values) depend on those conditions[13][29].

Sources: LevelMax BondMax data[1][29]; SikaBond-T21 tech data[30]; UZIN MK1500 data[14]; North American “Timber Bond MS” datasheet[20][16]; industry publications[7][26]; adhesive maker blogs[8]; and independent analyses[21][3]. Tables and figures are derived from these cited specifications.
